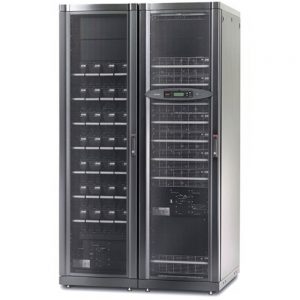

APC Symmetra PX 70kVA UPS Scalable 80kVA – SY70K80F

A high-efficiency 3-phase UPS that is scaleable as your data center grows up to 80kW/80kVA. Suitable for small to medium data centers or individual zones of large data centers

Add Options

• Power Distribution with Maintenance Bypass 480 volt or 208 volt input available.
• Increase run time with additional battery modules ( SYBT4) or Premium Battery Cabinet
• Power module SYPM10KF for N+1 Redundancy or to keep a spare on site.
• Service options – service agreements are available from local providers.

Output

• Output power capacity- 70.0 KWatts / 70.0 kVA
• Max Configurable Power (Watts)- 80.0 KWatts / 80.0 kVA
• Nominal Output Voltage- 120V , 208V , 208V 3PH
• Output Voltage Distortion- Less than 3%
• Output Frequency (sync to mains)- 57 – 63 Hz for 60 Hz nominal
• Output Frequency (not synced)- 60Hz +/- 0.1% for 60Hz nominal
• Load Crest Factor- Unlimited
• Topology- Double Conversion Online
• Waveform type- Sine wave
• Maximum Output- Current 222
• Bypass- Built-in Static Bypass

Input

• Nominal Input Voltage- 208V 3PH
• Input frequency- 50/60 Hz +/- 5 Hz (auto sensing)
• Input Connections- Hard Wire 5-wire (3PH + N + G)
• Input voltage range for main operations- 177 – 240V
• Input Power Factor at Full Load- 0.99

Batteries

• Battery type- No internal battery – uses external battery system
• Typical recharge time- 2hour(s)
• Expected Battery Life (years)- 3 – 5
• Extendable Run Time- 1

Communications & Management

• Interface Port(s)- SmartSlot
• Pre-Installed SmartSlot™ Cards- AP9630
• Audible Alarm- Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)- Yes
• Available SmartSlot™ Interface Quantity- 2

Physical

• Maximum Height- 81.5inches ( 2070mm , 207.0CM )
• Maximum Width- 48.0inches ( 1219mm , 121.9CM )
• Maximum Depth- 35.5inches ( 902mm , 90.2CM )
• Rack Height- 42U
• Net Weight- 2999.0lbs. ( 1363.18KG )
• Shipping weight- 3125.4lbs. ( 1420.64KG ))
• Shipping Height- 91.0inches ( 2311mm , 231.1CM )
• Shipping Width- 59.0inches ( 1499mm , 149.9CM )
• Shipping Depth- 41.5inches ( 1054mm , 105.4CM )
• Color- Black
• Units per Pallet- 1.0

Enviromental

• Operating Temperature- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-10000ft ( 0-3000meters )
• Storage Temperature- -15 – 40 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-50000ft ( 0-15000meters )
• Audible noise at 1 meter from surface of unit- 71.0dBA
• Online thermal dissipation- 17826.0BTU/hr
• Protection Class- NEMA 1

Output

• Output power capacity- 70.0 KWatts / 70.0 kVA
• Max Configurable Power (Watts)- 80.0 KWatts / 80.0 kVA
• Nominal Output Voltage- 120V , 208V , 208V 3PH
• Output Voltage Distortion- Less than 3%
• Output Frequency (sync to mains)- 57 – 63 Hz for 60 Hz nominal
• Output Frequency (not synced)- 60Hz +/- 0.1% for 60Hz nominal
• Load Crest Factor- Unlimited
• Topology- Double Conversion Online
• Waveform type- Sine wave
• Maximum Output- Current 222
• Bypass- Built-in Static Bypass

Input

• Nominal Input Voltage- 208V 3PH
• Input frequency- 50/60 Hz +/- 5 Hz (auto sensing)
• Input Connections- Hard Wire 5-wire (3PH + N + G)
• Input voltage range for main operations- 177 – 240V
• Input Power Factor at Full Load- 0.99

Batteries & Runtime

• Battery type- No internal battery – uses external battery system
• Included Battery Modules- 7
• Typical recharge time- 2hour(s)
• Battery Slots Empty- 1
• Expected Battery Life (years)- 3 – 5
• Extendable Run Time- 1

Communications & Management

• Interface Port(s)- SmartSlot
• Pre-Installed SmartSlot™ Cards- AP9630
• Audible Alarm- Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)- Yes
• Available SmartSlot™ Interface Quantity- 2

Physical

• Maximum Height- 81.5inches ( 2070mm , 207.0CM )
• Maximum Width- 48.0inches ( 1219mm , 121.9CM )
• Maximum Depth- 35.5inches ( 902mm , 90.2CM )
• Rack Height- 42U
• Net Weight- 2999.0lbs. ( 1363.18KG )
• Shipping weight- 3125.4lbs. ( 1420.64KG ))
• Shipping Height- 91.0inches ( 2311mm , 231.1CM )
• Shipping Width- 59.0inches ( 1499mm , 149.9CM )
• Shipping Depth- 41.5inches ( 1054mm , 105.4CM )
• Color- Black
• Units per Pallet- 1.0

Enviromental

• Operating Temperature- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-10000ft ( 0-3000meters )
• Storage Temperature- -15 – 40 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-50000ft ( 0-15000meters )
• Audible noise at 1 meter from surface of unit- 71.0dBA
• Online thermal dissipation- 17826.0BTU/hr
• Protection Class- NEMA 1
