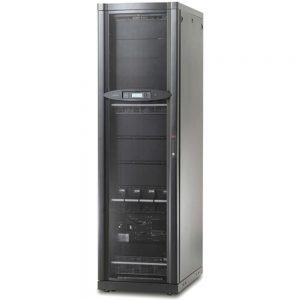

APC ISX20K20F Symmetra PX UPS s a high-efficiency 3-phase UPS. Includes three power modules ( SYPM10KF), two battery modules ( SYBT4) and one SNMP Card. (AP9617 or newer).

Output

• Output Power Capacity- 20 kW / 20 kVA
• Max Configurable Power- 20 kW / 20 kVA
• Nominal Output Voltage- 120V, 208V, 208V 3PH
• Output Voltage Note- Configurable for 208 or 240 nominal output voltage
• Efficiency at Full Load- 89%
• Output Voltage Distortion- Less than 5%
• Output Frequency (sync to mains)- 60 Hz-programmable, +/-0.5%/1/2/4/6/8%l
• Crest Factor- 2.5 : 1
• Topology- Double Conversion Online
• Waveform Type- Sine wave
• Output Connections- (9) NEMA L21-20
• Bypass- Built-in maintenance and Static Bypass

Input

• Nominal Input Voltage- 208V 3PH
• Input Frequency- 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections- Hard Wire 5-wire (3PH + N + G)
• Input voltage range for main operations- 177 – 240V

Battery

• Typical recharge time- 2.65 hour(s)
• Replacement Battery- SYBT4 Battery Volt-Amp-Hour Capacity 672

Communications & Management

• Interface Port(s)- SmartSlot
• Available SmartSlot™ Interface Quantity- 2
• Pre-Installed SmartSlot™ Cards- AP9617
• Control panel- Multi-function LCD status and control console
• Audible Alarm- Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)- Yes

Dimensions and Weights

• Maximum Height- 2070.00 mm/81.5 ins
• Maximum Width- 610.00 mm/24 ins
• Maximum Depth- 902.00 mm/35.5 ins
• Rack Height- 42U
• Net Weight- 819.55 KG/ 1803 lbs
• Shipping Weight- 842.27 KG/ 1853.00 lbs
• Shipping Height- 2311.00 mm/ 91 ins
• Shipping Width- 749.00 mm/ 29.5 ins
• Shipping Depth- 1054.00 mm/ 41.5 ins

Enviromental

• Operating Environment- 0 – 40 °C
• Operating Relative Humidity- 0 – 95%
• Operating Elevation- 0-3000 meters
• Storage Temperature- -15 – 40 °C
• Storage Relative Humidity- 0 – 95%
• Storage Elevation- 0-4500 meters
• Audible noise at 1 meter from surface of unit- 58.00 dBA
• Online Thermal Dissipation- 5942.00 BTU/hr
