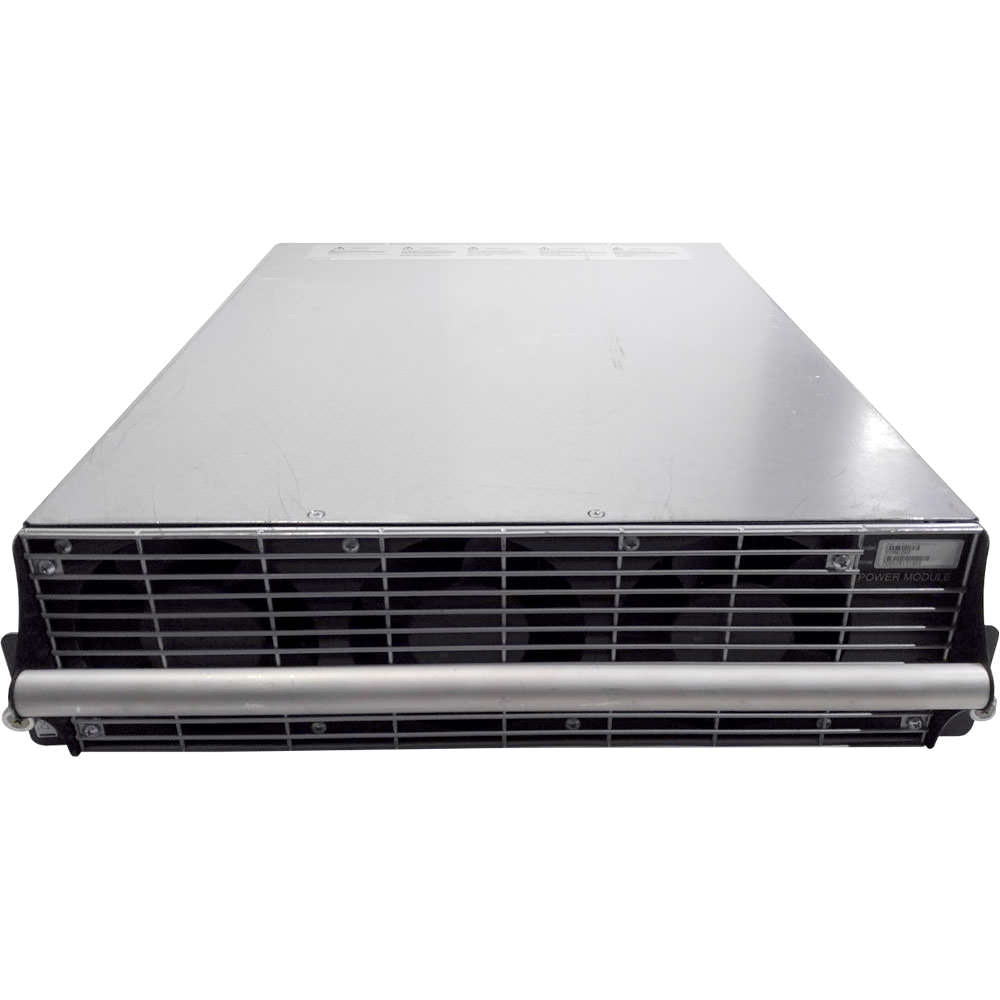

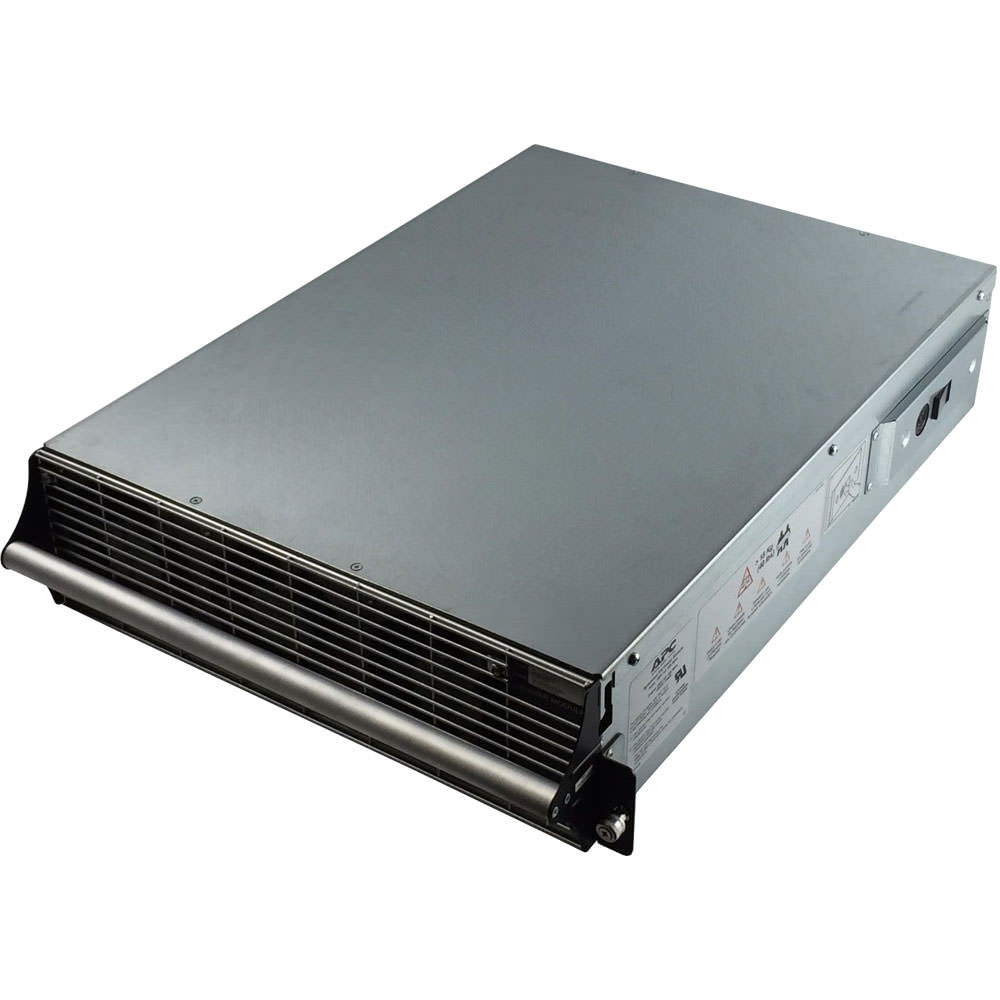

Symmetra PX 10kW Power Module, 208V

Output

• Output power capacity- 10.0 KWatts / 10.0 kVA
• Max Configurable Power (Watts)- 10.0 KWatts / 10.0 kVA
• Nominal Output Voltage- 208V , 208V 3PH
• Efficiency at Full Load- 92.0 %
• Output Voltage Distortion- Less than 5% at full load
• Output Frequency (sync to mains)- 57 – 63 Hz for 60 Hz nominal
• Output Frequency (not synced)- 60Hz +/- 0.1% for 60Hz nominal
• Load Crest Factor- Unlimited
• Topology- Double Conversion Online
• Waveform type- Sine wave

Input

• Nominal Input Voltage 208V , 208V 3PH
• Input frequency 60 Hz +/- 3 Hz
• Input Connections Hard Wire 5-wire (3PH + N + G)
• Input voltage range for main operations 177 – 239 (208V)V
• Number of Power Cords- 1
• 1Efficiency at Full Load- 92.0 %
• Input Power Factor at Full Load- 0.99

Communications & Management

• Audible Alarm- Alarm when on battery : distinctive low battery alarm : configurable delays

Physical

• Maximum Height- 5.24inches ( 133mm , 13.3CM )
• Maximum Width- 19.02inches ( 483mm , 48.3CM )
• Maximum Depth- 27.56inches ( 700mm , 70.0CM )
• Rack Height- 3U
• Net Weight- 58.0lbs. ( 26.36KG )
• Shipping weight- 70.0lbs. ( 31.82KG )
• Shipping Height- 10.75inches ( 273mm , 27.3CM )
• Shipping Width- 22.0inches ( 559mm , 55.9CM )
• Shipping Depth- 32.75inches ( 832mm , 83.2CM )
• Color- Black
• Units per Pallet- 8.0

Enviromental

• Operating Temperature- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-3333ft ( 0-999.9meters )
• Storage Temperature- -40 – 70 °C
• Storage Relative Humidity- 0 – 95 %
• Audible noise at 1 meter from surface of unit- 64.0dBA
• Online thermal dissipation- 2970.0BTU/hr
